Promises for Game Development

How are games structured and how can promises improve game development?

You could argue that a game is a sequence of time-dependent activities happening one after the other, dependent on and influenced by previous activities and user input. Game or level completion happens when the player satisfies a set of objectives. Objectives depend on activities and prior objectives. If you can imagine looking at it from a 4-dimensional perspective, a game looks like an interwoven tapestry of objectives and activities with complex dependencies between them.

Some of the prize tools in any game development toolbox are those that help wire together objective and activity dependencies in a manner that is elegant, expressive and easy to change as the game is evolved. Of course we already have many patterns at our disposal for structuring game code: the strategy pattern, finite state machines (fsms), hierarchical fsms, behavior trees, scripting, coroutines, messaging/event systems, entity component systems and probably more. All are worth understanding.

We'd like to show that promises belong in this mix. They are a simple alternative, very useful for a great variety of tasks and you can probably start using them straight away. The power of promises comes from the ability to treat a sequence of activities as a single entity. This is the base of reuse with promises, you can create bigger and bigger building blocks from which to compose a variety of game logic and behaviour. The resulting code is readable, understandable and maintainable.

Promises are already immediately useful for many traditionally asynchronous operations such as loading assets. We also use them for sequencing movements, animations and sound into sequences you might easily call a cutscene. But for some of the more complex logic we had to upgrade the promises pattern. Before we get to that, let's cover the more basic use of promises in C#.

Promises to the Rescue in C#

At Real Serious Games we translated the promises pattern to C# and it immediately enabled a design improvement in our async code for tasks such as loading assets. In these cases it is typically preferred to load asynchronously rather than to block and get a callback when the load has completed. This frees up the thread for other processing or simply just for keeping the UI responsive.

Let's work through some examples so you'll understand the basics of promises.

An async operation is usually started by a function that returns a promise, so let's start with such a function:

public IPromise<MyAsset> LoadAsset(string assetPath)
{
    // ...
}

LoadAsset initiates a promise-based async operation:

var promise = new Promise<MyAsset>();

// ... start the async operation ...

return promise;

The async operation is started before returning the promise. The caller can immediately use the returned promise (via its fluent API) even though the asynchronous operation is still in flight and has not yet completed.

Upon completion of the async operation, in whatever way that notification actually occurs, LoadAsset resolves the promise:

promise.Resolve(theLoadedAsset);

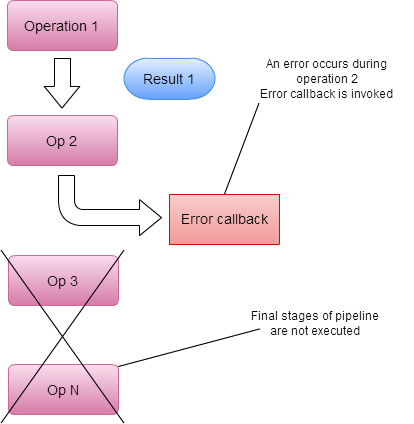

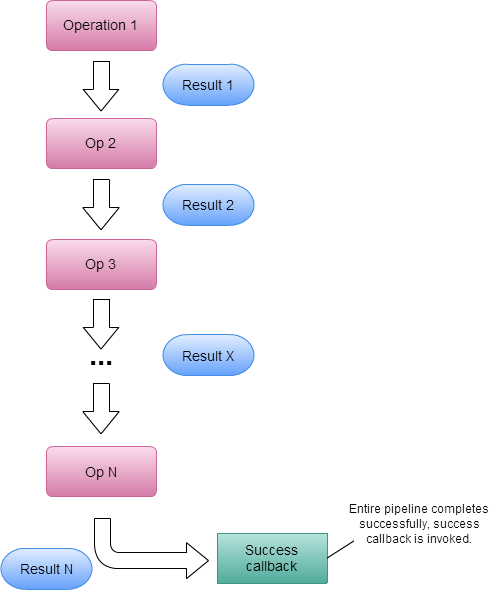

Resolving the promise triggers a pipeline of downstream callbacks that have been defined by the caller using functions such as Then, ThenAll and Done.

The simplest pipeline simply uses Done to attach a callback as the last stage of the pipeline:

LoadAsset(someAssetPath)
    .Done(myAsset => OnAssetLoaded(myAsset));

Multiple operations can be chained using Then, for example loading a linked asset:

LoadAsset(someAssetPath)
    .Then(myAsset => LoadAsset(myAsset.LinkedAssetPath))
    .Done(nextAsset => OnAssetLoaded(nextAsset));

The anonymous function that defines the callback at each pipeline stage is invoked only after the preceding stage has resolved. Each pipeline stage returns a new promise that represents a new async operation which must complete before the pipeline can continue to the next stage (or the final stage as specified by Done in this case).

This is a trivial example, but hopefully you are starting to see the power of promises.

Let's up the ante. For the RSG Promise library we have added a new function that allows multiple dependent promises to be chained. This example uses ThenAll to load multiple linked assets:

LoadAsset(someAssetPath)
    .ThenAll(myAsset =>
		myAsset.LinkedAssets.Select(path => LoadAsset(path))
	)
    .Done(linkedAssets => OnAllAssetsLoaded());

ThenAll is passed a callback that returns a collection of promises. All of these promises must complete before the pipeline continues. LINQ Select transforms the collection of linked assets into a collection of promises to load those assets. As C# programmers we prefer LINQ's method syntax over its query syntax.

The great thing about promises is just how easy it is to manage chained sequences of async operations. Need to insert a new operation into your pipeline? The pipeline is easily modified:

LoadAsset(someAssetPath)
    .ThenAll(myAsset =>
		myAsset.LinkedAssets.Select(path => LoadAsset(path))
	)
    .Then(linkedAssets => SomeOtherAsyncOperation(linkedAssets))
    .Then(somethingElse => AndAnotherAsyncOperation(somethingElse))
    .Done(somethingElseAgain => OnAllAssetsLoaded(somethingElseAgain));

The C# promises library and documentation is available on github.

Promises to the Rescue in Game Dev

There are many situations in game development that require waiting for some async operation to complete or for some condition to be fulfilled. Here are some examples:

Downloading files or data from a network
Playing a particle effect at the end of an animation
Playing a sound effect at the end of an animation
Moving a camera to a certain position
Waiting for the player to die
Waiting for the player to lose all their lives
Waiting for user input
Waiting for a timer to run out
Waiting for all requirements of an achievement to be met

In the following sections we will work through examples (from basic to more advanced) of promises used specifically for game development.

Promises for Asynchronous Asset Loading

Games often need asynchronous operations. Either for loading and initialisation or for runtime operations that execute over multiple frames.

At startup a level and other assets must be loaded. Maybe data is pulled from a database in the cloud. Initialisation of other systems may depend on the loading of this data.

A naive attempt might be frequent polling to see if the loading has completed:

public void Update(float deltaTime)
{
    if (!gameLoaded)
    {
        if (gameLoadFinished)
        {
            // Loading has finished.
            gameLoaded = true;
            // Initialize systems...
        }
        else
        {
            // Not loaded yet, maybe progress the loading screen animation.
            return;
        }
    }
    else
    {
        // Game is loaded...
        // Update AI, world, etc.
    }
}

Now polling can be useful but it is often considered a bad practice. And you see that it is clunky and inelegant.

This style of coding gets complicated quickly as initialisation dependencies are added. Not to mention the other issues we really should be considering. How do we handle and recover from failure? Do we poll yet another variable that indicates an error condition?

Polling like this brings to mind the pull model of computing in which we ask objects about state changes. According to Lee Campbell the world has already moved to the push model, but us developers are still catching up. In the push model we are notified of state changes instead of having to ask.

You are already in the push model realm if you are using C# events. Something like this:

public void Startup()
{
    // No need to poll, this event will notify
	// when the level has been loaded.
    levelLoader.LevelLoaded += levelLoader_LevelLoaded;
    levelLoader.Load("SomeLevel");
}

private void levelLoader_LevelLoaded(object sender, LevelLoadedEventArgs e)
{
    // Initialize dependent systems...
}

C# events are better but the code can still get complicated very quickly. Imagine having a spider web of asynchronous dependencies that must be resolved before your game starts. How far can you go with C# events? Again, the confusion rises sharply as the complexity increases and the code becomes more difficult to manage and maintain.

Moving on from events we can use callbacks (with anonymous methods) instead of events, a technique that is ubiquitous in Javascript and Lua:

public void Startup()
{
    levelLoader.Load("SomeLevel", loadedLevel =>
    {
        // Initialize dependent systems...
    });
}

You can get a lot of mileage out of callbacks. They better allow for a chain of loading and initialization:

public void Startup()
{
    // Load the level.
    levelLoader.Load("SomeLevel", loadedLevel =>
    {
        // After level has loaded, load behaviours required by the level.
        behaviorLoader.LoadBehaviors(loadedLevel.RequiredBehaviours,
			loadedBehaviors =>
        	{
            	// Initialise dependent systems...
        	}
		);
    });
}

The problem with callbacks is that they lead to deep nesting of anonymous functions and much resulting confusion. This is a problem so prevalent that is has been given the name callback hell.

So this is where we arrive at promises. You need a better tool to structure and manage your complex asynchronous code. If you can appreciate the problems described already in this article, then promises are going to be a welcome addition to your toolbox.

The methods presented above can very quickly turn into a tangled web of code that is difficult to debug, test and maintain. Using Promises you can layout your chain of dependencies in an elegant and readable manner:

levelLoader.LoadLevel("SomeLevel")
    .Then(loadedLevel => LoadSomethingElse(loadedLevel))
    .Then(loadedLevel => LoadAnotherThing(loadedLevel)))
    .Done(loadedLevel => StartGame(loadedLevel));

Another nice thing about promises: with gradual refactoring of your code it is possible to convert to promises. We know because we did this, incrementally replacing Unity coroutines with promises (and testing very carefully at each stage).

This is really just a taster of what promises can do. We need to explore them in more depth so you'll understand how transformative they can be for your development process.

Promises for Composing Game Logic

Promises have a powerful ability to compose sequences of operations via the fluent API. We have extended the promises specification by adding composition operators to solve problems specific to game development. In this section we will look at these new operators. All for composing parallel operations, Race for completing when the first parallel operation completes and Sequence for scheduling a collection of sequential operations.

Promise.All

All packages up multiple promises, the resulting promise resolves only when all of the packaged promises have resolved.

This can be very useful in a number of situations. For example an achievement system. Imagine a puzzle game with an achievement that is unlocked after the player has played the game for 20 minutes and finished 10 levels in that time:

IPromise OpeningGambitAchievement()
{
    return Promise.All(
        WaitForTimeSpentOnPuzzles(60 * 20),
        FinishedSpecificNumberOfLevels(10)
    );
}

WaitForTimeSpentOnPuzzles and FinishedSpecificNumberOfLevels are both functions that return promises. What they are doing internally will be explained later, for now it is important to understand that the promise returned by OpeningGambitAchievement will resolve when both of the inner promises have resolved, regardless of how far apart those two events occur.

To use this promise, you simply fire and forget:

OpeningGambitAchievement()
    .Done(() => ShowAchievementNotification("OpeningGambit");

All can also take a collection of promises to resolve, e.g. a collection of objectives the player must complete:

IEnumerable<IPromise> ObjectivesToComplete()
{
    // ... return a collection of promises ...
}

It is now easy to receive a notification when the player has completed the objectives:

Promise.All(ObjectivesToComplete())
    .Done(() => OnObjectivesCompleted());

All can be used within a chain via ThenAll:

LoadLevel(someLevel)
	.ThenAll(theLevel => ObjectivesToComplete(theLevel))
	.Done(() => OnLevelCompleted());

Promise.Race

Race is similar to All, but it resolves immediately when the first inner promise resolves. Each of the promises are racing each other for completion. This allows us to easily build timeouts into our code.

Imagine a situation where the user needs to provide some input, but there is a time limit on their opportunity to do so. In this example the returned promise resolves either on input from the player or after the timeout has expired, whichever comes first:

IPromise WaitForTimedUserInput(float timeoutSeconds)
{
    return Promise.Race(WaitForInput(), Timeout(timeoutSeconds));
}

Be warned that the other inner promises will continue running until they complete. Although the Race promise resolves and invokes chained logic as soon as the first promise completes, the other promises will continue to run until completion. So be careful using promises that are making asynchronous state changes and causing side effects.

Race can be used within a chain via ThenRace.

Promise.Sequence

Some scenarios, for example animating a dynamically generated sequence of movements, can be simplified using the Sequence function. You may have a hard-coded sequence of operations:

PromiseOne()
    .Then(PromiseTwo())
    .Then(PromiseThree())
    .Then(PromiseFour())
    // ... etc ...
    .Done();

Sequence is needed to change this to a dynamically generated collection of operations (possibly loaded from data).

Sequence is given a collection of functions, each returning a promise. Each function is invoked in-turn one after the other, but only after the previous promise has resolved. This enables a sequence of asynchronous operations to be executed serially:

IEnumerable<Func<IPromise>> GenerateMovementSequence()
{
    // Generate a collection of functions that each initiate an async operation
    // and returns a promise.
}

Promise.Sequence(GenerateMovementSequence())
    .Done(() =>
    {
        // The sequence has completed.
    });

This sounds more complicated than it actually is. We need a collection of functions, rather than a collection of promises, since we need to hold off starting each async operation until its turn arrives. We can't simply pass in a collection of promises, as already having a promise implies that the async operation has already started, meaning that every operation in the sequence would start at the same time and this is not what we want (this is what All does). So Sequence must take functions that are yet to be called.

As an example, let's say we have an NPC guard who follows a series of waypoints. When the behaviour is completed the NPC is reset to later be triggered again by the player.

We could use promises in the way mentioned above, chaining together Thens to build a sequence that moves the NPC over time through each of the waypoints. This means we need to know the waypoints at compile time. We'd like to make this data driven, loading the set of waypoints from data. This is a perfect opportunity for Sequence.

Let's assume we have a function for moving our NPC that returns a promise. The promise resolves when the NPC has moved into position:

IPromise MoveToPosition(Vector3 endPosition, float movementSpeed);

This would be enough for us to manually chain it. But to use Sequence we need to return a function that returns a promise, allowing Sequence to call it at the right time:

Func<IPromise> PrepMoveToPosition(Vector3 endPosition, float movementSpeed)
{
    return () => MoveToPosition(endPosition, movementSpeed);
}

PrepMoveToPosition wraps MoveToPosition in an anonymous function and returns the new function. This allows us to build a collection of such functions to pass to Sequence:

Vector3[] waypoints = ... loaded from data ...

void MoveAlongWaypoints(float movementSpeed)
{
    // Generate collection of functions for moving through the way points.
    var moves = waypoints
        .Select(waypoint => PrepMoveToPosition(waypoint, movementSpeed);

    Promise.Sequence(moves)
        .Done(() => Reset()); // Reset the NPC ready to be triggered again.
}

You can see how promises not only enable, but encourage us to separate our logic, breaking our functions down to tight, logical components that are easy to read and manage.

Sequence can be used within a chain via ThenSequence

Promises for time based logic

Using promises in the above scenarios has clear benefits, however they really hit their full potential when we extend promises to factor in time.

Most game developers will have used a timer in some way, tracking time is a necessary and important part of game development. Examples include power ups that last for a limited amount of time, end conditions based on time taken, time per lap in a racing game and at the top end of complexity, entire cutscenes that are sequences of many timed operations.

In it's simplest form a timer is used to trigger logic after a certain amount of time has passed. Once-off, this is a simple problem to solve in code. It's a floating point value that is incremented by delta elapsed time each update:

    void Update(float deltaTime)
    {
        curTime += deltaTime;

        if (curTime < triggerTime)
        {
            // Still counting towards the timer
        }
        else
        {
            // Time is up
        }
	}

This is a simple technique, but scaling up complicates things. Having multiple timer running becomes hard to debug and maintain.

Let's consider a more complicated example.

Imagine your player character is a shape changer and capable of taking on multiple forms, with each form having specific benefits. The player can only activate these forms from the human form and while changed they cannot control when they change back, which happens after a random amount of time. To further complicate this, while in each of these forms, the player can activate power-ups specific to that form, which also have their own timers.

class Character
{
    float currentFormTimer; // The amount of time left in the current form.

    enum Form
    {
        Human,
        Wolf,
        Hawk,
        Dolphin
    }
    Form currentForm = Form.Human;

    float currentPowerupTimer;

    enum Powerup
    {
        None,
        Werewolf,
        HawkSpeed,
        DolphinEcho
    }
    Powerup currentPowerup = Powerup.None;

    public void Update(float deltaTime)
    {
        if (currentForm != Form.Human)
        {
            currentFormTimer -= deltaTime;

            if (currentFormTimer <= 0f)
            {
                // Return to human form
                currentForm = Form.Human;

                // Disable any powerups that were active
                currentPowerup = Powerup.None;
            }

            if (currentPowerup != Powerup.None)
            {
                currentPowerupTimer -= deltaTime;
                if (currentPowerupTimer <= 0f)
                {
                    currentPowerup = Powerup.None;
                }
            }
        }
    }
}

This example is still simple, but well on it's way too becoming overly complicated, also ugly and difficult to read. You can imagine how it will look as we add more features and more timers.

With another extension to our promises library we can improve our use of timers. This will allow us to move this logic out of Update and into separate functions, each with a clearly defined responsibility.

We have implemented the PromiseTimer class which can bridge the gap between promises and timers. The WaitFor function returns a promise that resolves after the requested time has passed:

    PromiseTimer promiseTimer = new PromiseTimer();

    promiseTimer.WaitFor(timeToWait)
        .Done(() =>
		{
			// Time is up
		});

Let's define a convenience function within the same class:

PromiseTimer promiseTimer = new PromiseTimer();

IPromise WaitFor(float timeToWait)
{
    return promiseTimer.WaitFor(timeToWait);
}

Now somewhere our timers still must be updated. Let's do that in the Character class:

void Update(float deltaTime)
{
	promiseTimer.Update(deltaTime);
}

Now let's rewrite the Character example using WaitFor. You'll remember the logic in the Update. Here we can move that out to appropriate helper functions.

class Character
{
    PromiseTimer promiseTimer = new PromiseTimer();

    enum Form
    {
        Human,
        Wolf,
        Hawk,
        Dolphin
    }
    Form currentForm = Form.Human;

    enum Powerup
    {
        None,
        Werewolf,
        HawkSpeed,
        DolphinEcho
    }
    Powerup currentPowerup = Powerup.None;

    public void Update(float deltaTime)
    {
        promiseTimer.Update(deltaTime);
    }

    // Activates wolf mode if possible
    public IPromise BeWolf()
    {
        if (currentForm != Form.Human)
        {
            // Resolve this promise straight away,
			// we already have one running for a transformation.
            return Promise.Resolved();
        }

        // Wait for a random time between 10 and 20 seconds
        return RunTimer(Random.Range(10f, 20f))
            .Then(() => currentForm = Form.Human); // Return to human mode.
    }

    ...

    // Similar functions for the other transformations

    ...

    // Activate power-up.
    public IPromise ActivateWerewolfPowerup()
    {
        if (currentForm != Form.Wolf || currentPowerup == Powerup.Werewolf)
        {
            return Promise.Resolved();
        }

        currentPowerup = Powerup.Werewolf;

        return promiseTimer.WaitFor(Random.Range(1f, 5f))
            .Then(() => currentPowerup = Powerup.Werewolf);
    }
}

And all our timer based logic is neatly handled for us by the PromiseTimer.

You may have noticed the small problem with our shapechanger code! Should the wolf form time end before the werewolf power-up time, the power-up would remain active. We can address that easily by extending promises for conditional gating.

Promises for Conditional Gating

You may have already picked up on the fact that All, Race and Sequence are very similar to the standard programming constructs and, or and for. Thinking about them in this way will help you understand how they can be used to construct conditional logic and behaviour.

The PromiseTimer extends on these by adding the time-based conditional operations WaitUntil and WaitWhile.

WaitUntil returns a promise that resolves at some future time when our custom condition has evaluated to true. This condition could be a time limit, making it perform exactly the same as WaitFor, or it could be any other expression that returns a boolean result.

In the last section we mentioned the logic error in the power-up function:

IPromise ActivateWerewolfPowerup()
{
    if (currentForm != Form.Wolf)
    {
        return Promise.Resolved();
    }

    return promiseTimer.WaitFor(Random.Range(1f, 5f));
}

If currentForm should change after the WaitFor has started but before it finishes, meaning our character has reverted to human form, the werewolf powerup will remain active until it's time runs out, despite the character not being in wolf form anymore. This can be fixed with WaitUntil:

IPromise ActivateWerewolfPowerup()
{
    var powerupTime = Random.Range(1f, 5f);
    return promiseTimer.WaitUntil(t =>
    {
        return t.elapsedTime >= powerupTime || currentForm != Form.Wolf);
    });
}

Here our promise will resolve once the time has run out, or the character is not a wolf, whichever comes first.

Earlier, when talking about Promise.All, we talked about two promise-returning functions that were used to detect an achievement. They were WaitForTimeSpentOnPuzzles and FinishedSpecificNumberOfLevels. Both are very simple to construct using the PromiseTimer:

IPromise WaitForTimeSpentOnPuzzles(float seconds)
{
    return promiseTimer.WaitUntil(timeData =>
    {
        var timePlaying = 0f;
        if (!paused)
        {
            timePlaying += timeData.deltaTime;
        }

        return timePlaying >= seconds;
    });
}

IPromise FinishedSpecificNumberOfLevels(int levelCount)
{
    return promiseTimer.WaitUntil(_ => levelsCompleted >= levelCount);
}

Using WaitUntil we can quickly and easily build complicated systems that are still manageable. For instance, let us assume our crazy shapechanger game has a whacky achievement system. It has an achievement for completing a level with 1 second left on the clock, on a Tuesday, while in dolphin form (I don't know why you'd do this, but it could be fun). You can imagine how complicated these types of achievements can be to code. Especially if your game has 150+ of them. We can use WaitUntil to monitor a complex set of conditions and dynamically respond:

class LevelManager
{
    DateTime timeOfLevelStart;

    Character character;
    float curTimeRemaining; // The amount of time left on the clock
    float totalLevelTime = 60f; // 1 minute to finish the level.
    PromiseTimer promiseTimer = new PromiseTimer();

    public LevelManager()
    {
        timeOfLevelStart = DateTime.Now();
        curTimeRemaining = totalLevelTime;

        // Timer for the level,
		// this time counting down so we can catch that last second
        promiseTimer.WaitUntil(timeData =>
            {
                curTimeRemaining = totalLevelTime - timeData.elapsedTime;
                return curTimeRemaining <= 0;
            })
            .Done();

        promiseTimer.WaitUntil(_ =>
            {
                return
					timeOfLevelStart.DayOfTheWeek == DayOfTheWeek.Tuesday &&
                    character.IsInDolphinMode &&
                    curTimeRemaining <= 1f &&
                    curTimeRemaining > 0f;
            })
            .Then(() => ShowAchievementNotification("NailedItOnDolphinDay"))
            .Done();
    }
}

Nested Promises

We have already seen examples of promises nested within other promises, now let's take a more in-depth look at using them.

Imagine we are building a game that has a tutorial at the beginning. The tutorial shows some action, then pauses while it waits for the player to interact in a specific manner before moving on. We can construct this by building a larger promise from smaller promises:

IPromise MoveCamera(Vector3 endPosition, float durationSeconds)
{
    var startPosition = camera.CurPosition;
    return promiseTimer.WaitUntil(timeData =>
        {
            camera.CurPosition = Vector3.Lerp(
				startPosition,
				endPosition,
				timeData.elapsedTime / durationSeconds
			);

            return IsPositionCloseEnough(camera.CurPosition, endPosition);
        });
}

OK so nothing new yet. Now a function that waits for player input:

IPromise WaitForKeyInput(KeyCode key)
{
    return promiseTimer.WaitUntil(_ => InputManager.GetKey(key));
}

Now we sequence textual information, allowing the option of waiting for the user to press space to progress from one message to another. The boolean makes it optional because it isn't needed for the last text box in the sequence:

Func<IPromise> PrepTextBoxesForStage(string text, bool waitForInput)
{
    return () =>
    {
        TextBox.Text = text;
        TextBox.Show(); // Sets up the text and displays it on screen.
        if (waitForInput)
        {
            return WaitForKeyInput(KeyCode.Space);
        }

        return Promise.Resolved();
    }
}

Now let's build the sequence for the tutorial. We move the camera to a certain position, show 1 or more messages and wait for input:

Func<IPromise> PrepTutorialStage(
	Vector3 cameraPosition,
	string[] texts,
	KeyCode key
)
{
    // If the index is the last one in the array,
	// then we don't want to wait for the user's input
    var textBoxes = texts.Select(
		(text, index) =>
			PrepTextBoxesForStage(text, index != texts.length - 1)
	);
    return () =>
    {
        return MoveCamera(cameraPosition, 2f)
            .ThenSequence(() => textBoxes)
            .Then(() => WaitForKeyInput(key));
    }
}

Next we'll assume that we have our stages described in a database or spreadsheet from which we can load a collection of TutorialStage structures:

struct TutorialStage
{
    public Vector3 Position;
    public string[] Texts;
    public KeyCode key;
}

Finally pulling it altogether into a very small function, which returns a promise that resolves when the tutorial has completed:

IPromise RunTutorial(IEnumerable<TutorialStage> tutorialData)
{
    var tutorialStages = tutorialData
        .Select(data =>
			PrepTutorialStage(data.Position, data.Texts, data.key)
		);

    return Promise.Sequence(tutorialStages);
}

Phew, now we have a sequence of tutorial steps each customised to context, able to wait for user interaction, driven by data and with each part of the process separated and isolated. For a more specific implementation of this we have set up a Unity project demonstrating it. Please feel free to pull it down and poke around the code. It can be found here on GitHub

Promises vs Unity Coroutines

Promises are an alternative to coroutines in Unity. Coroutines have their place in our toolbox, but we prefer promises. If you have ever used coroutines to any degree of complexity you will know that the ability to comprehend them diminishes quickly as the code gets more complex

Coroutines in Unity build on C# iterators. Unity has control here... it runs our coroutine which returns an iterator. Unity then steps that iterator forward, element by element, advancing the execution of the iterator. Each time our coroutine yields we give control back to Unity, in the future Unity steps the iterator forward again allowing our coroutine to progress until it yields again or finally completes.

Promises are from the Javascript world and Javascript doesn't have coroutines, although generators are coming in ES6 and people are already talking about how to do coroutines in Javascript and the pros and cons of doing so. Coroutines seem to inspire equal measures of love and hate.

Of course we believe the use of promises results in more expressive and maintainable code than using coroutines.

However, coroutines do have one major advantage: it is much easier to read the flow of the code. This makes it easier to debug a linear sequence of code (even though overall debugging effectiveness is greatly reduced with coroutines). The only thing that gets in the way of reading the flow of the code is the frequent requirement to use yield return ... as opposed to Then, ThenAll and similar functions when working with promises. Both get in your way, but in coroutines it is definitely easier to read and debug over a short linear sequence of code.

While this is the only advantage to using coroutines, there are multiple disadvantages.

It is difficult to build larger coroutines out of smaller coroutines. Nested coroutines are tough to manage, you can do it of course but at first it isn't obvious how to achieve it. Sure, it's simple enough if you've done it once or twice. Try doing it 100s of times. On the other hand promises can be stitched together and nested in many ways to produce larger sequences of logic. This sort of composability results in better code reuse. You'll end up with a library of higher-level promise-returning functions for common logic that you can compose to build new behaviour creating new and different game logic. Recomposing and rewiring promises is trivial and increases your ability for fast experimentation, something that is essential to being productive while searching for the tweaks that put the fun in your game.

Another problem with coroutines is the lack of control you have over them. Unity runs coroutines automatically, you don't have any control over when and how coroutines are advanced and you have no idea what coroutines are running at any particular point. This is why coroutines are particularly hard to debug (even though debugging a single coroutine is in fact easier). This is a complete disaster for understanding what your code is doing. The only control you have over coroutines is the ability to yield from within the coroutine (thus giving control back to Unity) or you can stop one or all coroutines.

Stopping a single coroutine has its own problems. We can only stop it by specifying the name of the coroutine as a magic string (everyone knows this is bad right?). This impacts the type-safety of our code and breaks the automated refactoring tools in Visual Studio. Single promises or a group of promises can easily be stopped by stopping the PromiseTimer that is responsible for them. No magic strings are necessary to achieve this.

Using the PromiseTimer gives us back control. We can update promises wherever we want and (when debugging is enabled) we can display a list of the promises that are currently running. We can use multiple PromiseTimers to control different groups of promises in different ways, for instance we could pause a group of promises while we allow another group to continue running.

Want to know the major disadvantage of using coroutines? They can only be used from a MonoBehaviour. If you use coroutines then your code is tightly coupled to Unity and there is no chance that you'll run your code outside of it. This drastically limits opportunities for code reuse and test driven development. If you don't understand the need for this, maybe it won't be a problem for you, go ahead and use coroutines.

Almost Behaviour Trees?

As we worked with promises and extended them for game development we started to get the feeling that we were almost reinventing behaviour trees.

We weren't quite building AI (what behaviour trees are for). We were building interactive game behaviour. Sequencing sound, animation, user interaction, etc. Sequencing the flow of levels and the evaluation of the conditions required to progress to the next level.

Promises (as we use them) and behaviour trees have some overlapping functionality...

With the extended promises API we can run async operations in parallel (using All and ThenAll). This is very similar to using a parallel node in a behaviour tree.

We can run async operations sequentially (using Sequence and ThenSequence) and this is very similar to using a sequence node in a behaviour tree.

Promises can be nested hierarchically. That is to say that promises can have nested promises and the parent promise will resolve when its child promise(s) have resolved. Behaviour trees as well can be nested, they are after all a tree, an inherently recursive data structure.

Behaviour trees have a selector node, to which there is no corresponding feature in the promises API, not that it would be difficult to add one should it be needed.

When you come to the limits of promises you may want to consider using behaviour trees, they have a number of advantages over promises...

Behaviour trees are typically data-driven and built by game designers using an editor. This allows non-programmers to directly build, tweak and balance and is the ideal way to build game logic and AI. For indie game devs it may not be an option to use a behaviour tree editor and it may not even be an option to actually have a game designer as often the programmer will also be the game designer. In these situations code-driven game AI can work very well. We have certainly pushed promises very far already in this space and have been very happy with the result. We can however imagine a code-driven fluent-API for behaviour trees that would better suit us in some circumstances.

Behaviour trees are easier to control. They are designed to be paused, stopped, restarted, etc. Promises are not designed to do these things, although we can at least pause or stop a time-based promise that is running via the PromiseTimer, however it is difficult if not impossible to stop a mid-flight asynchronous operation such as awaiting the result of an network transaction. It's not that we can't work around these issues with promises, but if you take promises far enough that you hit these issues, you might want to start thinking about using behaviour trees. What we're saying is you should use promises where they are usefulÔÇª and bring in behaviour trees for those areas where promises become unwieldy.

Debugging can also be much easier for behaviour trees depending on the situation. If you have the luxury of having a behaviour tree editor you may also have some kind of visual behaviour tree debugger. This is great, but of course there is no substitute for debugging real code in a real debugger to work out what is going on. Debugging promises can be difficult, but at least you get to do it in a real debugger. We imagine that our fantasy behaviour tree fluent-API is easier to debug than the promises API.

Conclusion

Through this article we have described our experience using the promises pattern for game development. Any advanced technique has both benefits and disadvantages and you should be well informed, understand the risks and make educated decisions on which tech to bring into your development process.

Bringing the wrong technique or technology into your process can be disastrous. All things have their places, but used badly or in the wrong situation they can negatively impact your productivity, so be careful and have a plan B for when a particular technology doesn't work for you.

Make sure you plan time to learn. You can't rush into something and expect to be effective with it immediately. You need to understand the situations where it is useful and understand how to workaround and mitigate the potential pitfalls.

Please don't let this turn you off! We just want to make sure you are aware of what you are getting yourself into. By all means jump in and explore promises and we hope this article has helped you prepare for that. Just be aware that any advanced technology can be a black hole...

Please go to github to download the C# promises library and PromiseTimer: https://github.com/Real-Serious-Games/c-sharp-promise.

The Unity example can be found here: https://github.com/adamsingle/PromisesUnityDemo

Thanks for reading.
Ash and Adam.

About the Authors

Ashley Davis

Ash is a software developer living and working in Brisbane, Australia.

He has been developing games professionally since 1998 with a few interludes in other industries. In 2012 Ash moved into the world of serious games and simulations taking on the role of Lead Developer at Real Serious Games where he uses his experience to make game technology work for business.

Ash is both a full time developer and a contractor under the name Code Capers and is working on cloud and mobile products.

Ash regularly contributes to the open source community and is a founder and organiser of games industry meetups in Brisbane: Game Technology Brisbane and Game Development Brisbane.

For a longer bio please see Ash's profile on linked in.

Adam Single

Adam is a Husband, Father, Professional Developer, Indie Developer, lover of music and gamer. He's the coder for 7Bit Hero, a programmer on the tech team at Real Serious Games, co founder, programmer and co designer at Sly Budgie and co organiser of the Game Technology and Game Development Brisbane Meetups.

Since entering the professional game development industry in 2011, Adam has worked on numerous mobile games, including the Android hit Photon and a pre-install game designed for specific Disney Japan handsets. He's been the programmer on a team that created a huge, interactive display at Queensland University of Technology's amazing multi touch screen installation The Cube as a part of Australia's first Digital Writing Residency and worked on a team at Real Serious Games creating large scale, interactive simulations for the mining and construction industries, some of which are Virtual Reality based solutions using the Oculus Rift. All of this has been done using the Unity game engine.

Adam has a passion for the unique and engaging possibilities inherent in modern technology. When he's not working on exciting new game mechanics for Sly Budgie, he's experimenting with ÔÇ£home made VRÔÇØ using mobile phone technology, building mobile applications utilizing modern web development technologies and pushing the exciting ideas behind 7Bit Hero's live music/multiplayer game interaction down whichever fascinating path it should happen to lead.

Menu

Introduction

Contents

Introduction to Promises
